ONIX - Waltz XM10 Ltd
Hi-Res Digital Audio Player
₹ 89,999
Inclusive of all taxes
DELIVERY
Dispatches in 48 hours
RETURNS & WARRANTY
7 Day Replacement Guarantee
1 Year Warranty
Features Dual High-Quality AKM DAC Chips For Precise Decoding
ONIX Waltz XM10 Ltd embeds high-quality DAC chips from AKM - AK4499EX DAC and AK4191 to deliver exceptional decoding precision, ensuring outstanding audio clarity and an impressive dynamic range. With support for USB DAC Mode, the device offers high-resolution audio playback at PCM 384kHz/32bit and DSD256, providing an incredibly detailed and immersive listening experience.
Features Dual High-Quality AKM DAC Chips For Precise Decoding
ONIX Waltz XM10 Ltd embeds high-quality DAC chips from AKM - AK4499EX DAC and AK4191 to deliver exceptional decoding precision, ensuring outstanding audio clarity and an impressive dynamic range. With support for USB DAC Mode, the device offers high-resolution audio playback at PCM 384kHz/32bit and DSD256, providing an incredibly detailed and immersive listening experience.
Embeds Dual Headphone Amplifier Chips With 3.5mm Output & 4.4mm Adapter
ONIX Waltz XM10 Ltd features dual AD8397 headphone amplifiers to provide robust output power, ensuring a rich and dynamic audio experience. It houses a 3.5mm single-ended output and a 4.4mm balanced output (via the included 3.5mm to 4.4mm adapter) to offer versatile connectivity, allowing you to enjoy superior sound quality across a range of headphones.
Boasts “Brighton” Architecture Advanced Components For Hi-Fi Performance
The XM10 Ltd boasts an ONIX "Brighton" architecture, a cutting-edge in-house developed technology for enhanced performance. It equips the Android 13 upgrade for seamless future updates and is powered by the Qualcomm Snapdragon 665 system for smooth and efficient processing speed. The open Android 13 platform further allows for customisation and access to the latest features, ensuring a personalised and versatile user experience. It offers 6GB of RAM and 128GB of ROM for storage, while the MicroSD card slot supports up to 2TB for expansive storage options.
Connect Wirelessly For Seamless Compatibility With Hi-Res File Support
ONIX Waltz XM10 Ltd is equipped with Bluetooth 5.0 two-way transmit capabilities, supporting high-resolution audio files up to 768 kHz/32 bit and DSD1024 for exceptional sound quality and a stable and fast connection. The device offers versatile wireless connectivity options, including dual-band Wi-Fi (2.4G/5G), AirPlay 2, DLNA and SyncLink, providing multiple ways to connect to a wide range of devices. Whether streaming from a mobile device, home network or other wireless sources, you can expect reliable performance, enhanced convenience and superior audio clarity.
9 Hours Of Uninterrupted Music Playback & Rapid Charging
The XM10 Ltd features a 4300mAh battery to provide up to 9 hours of continuous playback on a single charge across both outputs. It supports Quick Charge (QC) and Power Delivery (PD) for fast and efficient recharging. This combination is ideal for on-the-go use or long listening sessions.

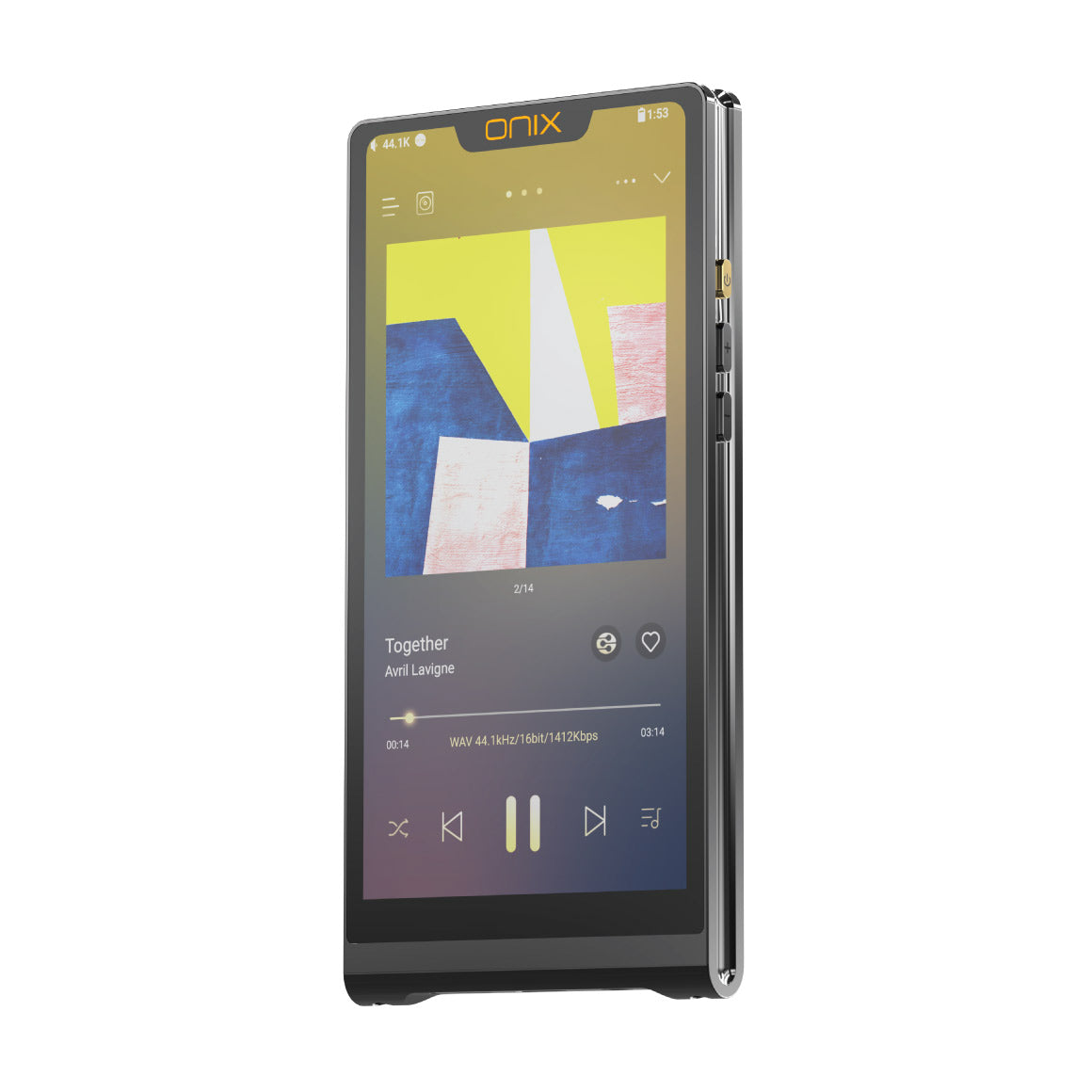

Meticulously Designed With High-Quality 6-Inch Touchscreen Display
ONIX Waltz XM10 Ltd is meticulously designed featuring an ultra-thin 11.5mm stainless steel body, making it compact and durable. It features a 6-inch touchscreen display with high brightness and stunning colours for easy control.
All You Need To Know About ONIX Waltz XM10 Ltd
DAC Chip
Dual AKM AK4191 + AK4499EX
Headphone Output
3.5mm (Single-Ended)With provided 3.5mm to 4.4mm Adapter
CPU
Qualcomm Snapdragon 665
Input
USBBluetooth
Transmit
LDAC, aptX HD, aptX, AAC, SBCReceive: LDAC, SBC
Hi-Res File Support
768 kHz/32 bit, DSD1024USB DAC Mode: PCM 384kHz/32bit, DSD256
Audio Format Support
DSD (*.iso", ".dsf", ".dff")*DST encoding of ISO is not supportedISO/DXD/APE/FLAC/WAV/AIFF/AIF/DTS/MP3/WMA/AAC/OGG/ALAC/MP2/M4A/AC3/M3U/M3U8/OPUS
Bluetooth
Bluetooth 5.0 Two-Way
Battery
Capacity: 4300mAh Lithium BatteryLife: 9H (Single-ended)/9H (Balanced)
System
Open Android 13
Memory
6GB RAM + 128 GB ROM + MicroSD Card
MicroSD Card
Supports up to 2TB
3.5mm Single-Ended Output
Output Power:Low Gain: 19mW @ 32 Ohms (1.3V @ 32 Ohms) (THD + N High Gain: 227mW @ 32 Ohms (2.7V @ 32 Ohms) (THD + N High Gain: 24mW @ 300 Ohms (2.7V @ 300 Ohms) (THD + N Frequency Response: 20Hz-40kHz (-0.5dB)THD+N: 0.0009% @ 32 Ohms (A-Weight @ 0.25V High Gain)Dynamic Range: 122dB @ 32 OhmsChannel Separation: 72dB @ 32 OhmsSignal-to-Noise Ratio: 122dB @ 32 Ohms (A-Weight High Gain)Noise: 113dBOutput Impedance: 0.6 Ohm
4.4mm Balanced Output (With provided 3.5mm to 4.4mm Adapter)
Output Power:Low Gain: 227mW @ 32 Ohms (2.7V @ 32 Ohms) (THD + N High Gain: 877mW @ 32 Ohms (5.3V @ 32 Ohms) (THD + N High Gain: 93mW @ 300 Ohms (5.3V@300 Ohms) (THD + N Frequency Response: 20Hz-40kHz (-0.5dB)THD+N: 0.0007% @ 32 Ohms (A-Weight @ 0.5V High Gain)Dynamic Range: 124dB @ 32 OhmsChannel Separation: 100dB @ 32 OhmsSignal-to-Noise Ratio: 124dB @ 32 Ohms (A-Weight High Gain)Noise: 110dBOutput Impedance: 1.0 Ohm
Product Details
Screen: 6.0-inch Touchscreen (2160*1080)Weight: 338gDimensions: : 157.7 x 76.8 x 11.5mm
Box Contents
1. ONIX Waltz XM10 Ltd2. 3.5mm to 4.4mm Balanced Adapter for the Full Output3. User Manual4. Warranty Card
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
Our customer support is available Monday to Friday: 11am-6pm.
What is the warranty period on the ONIX Waltz XM10 Ltd and how do I claim warranty?
The warranty period on ONIX Waltz XM10 Ltd is for 1 year. To read more information click here.
What DAC chips are used in the ONIX Waltz XM10 Ltd?
The ONIX Waltz XM10 Ltd features dual AKM DAC chips AK4499EX DAC and AK4191 for precise audio decoding with exceptional clarity and dynamic range.
What wireless connectivity options are available?
The ONIX Waltz XM10 Ltd supports Bluetooth 5.0 with two-way transmission, dual-band Wi-Fi (2.4G/5G), AirPlay 2, DLNA, and SyncLink for seamless wireless connectivity.
How much storage does the ONIX Waltz XM10 Ltd offer?
The device includes 6GB of RAM and 128GB of internal storage, with a MicroSD card slot that supports up to 2TB of additional storage.
What is the ONIX "Brighton" architecture?
The "Brighton" architecture is ONIX’s in-house developed technology designed to enhance performance, delivering improved audio fidelity and processing efficiency.
What processor powers the ONIX Waltz XM10 Ltd?
The device is powered by the Qualcomm Snapdragon 665 processor, ensuring smooth performance and efficient multitasking.
